Product Details:
|
| Waste Material: | Livestock Manure, Kitchen Garbage, Domestic Sludge, Etc. | Working Principle: | High Temperature Aerobic Fermentation |
|---|---|---|---|
| Usage: | Soil Improvement, Landscaping, Landfill Covers | Warranty Of Core Components: | 1 Year |
| Machinery Test Report: | Provided | Place Of Origin: | Shandong, China |
| High Light: | Kitchen Garbage Aerobic Reactor,fluidized bed biofilm reactor,Kitchen Garbage Biofilm Reactor |
||

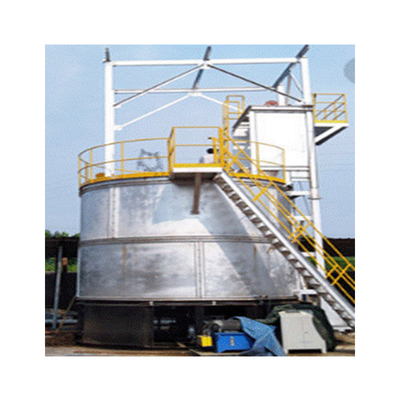

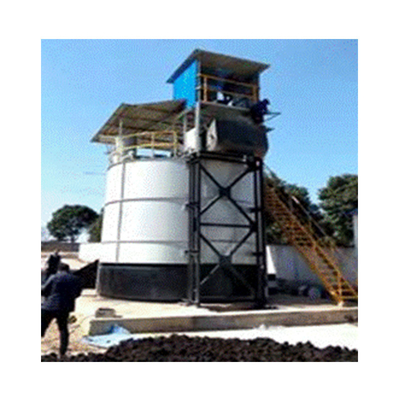

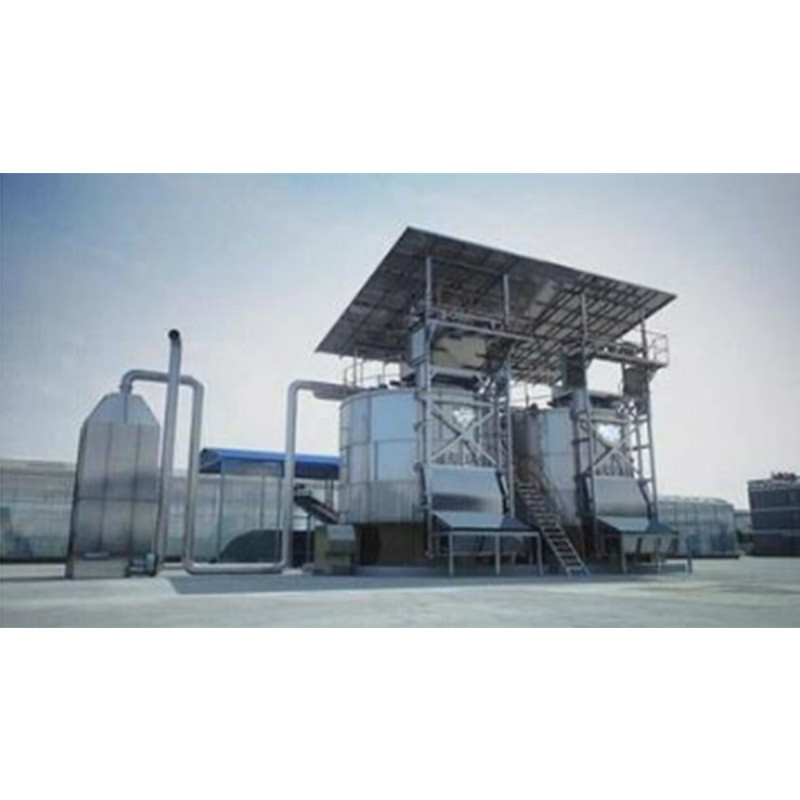

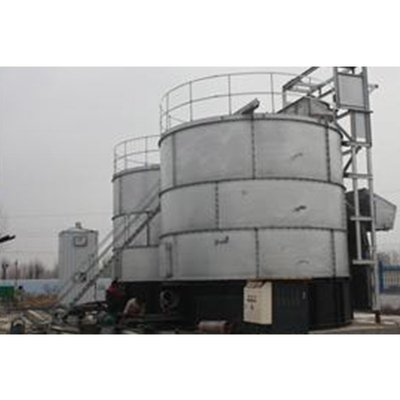

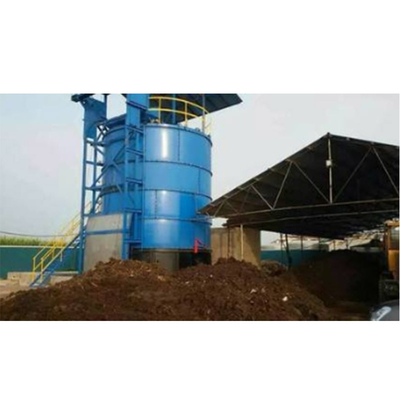

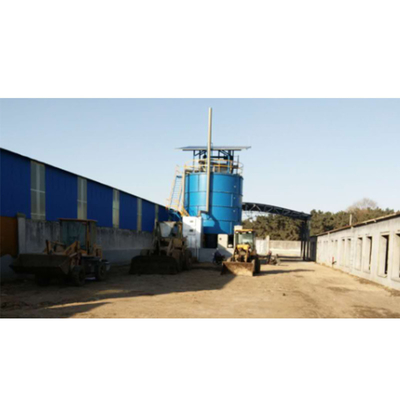

Activated Granular Aerobic Sludge Biofilm Reactors Aerobic Reactor
Aerobic Reactor Introduction:
In an aerobic reactor, the product conversion rate or the degradation rate is mainly based on the bubble size and gas-to-liquid mass transfer rate. Oxygen solubility is a main parameter that should be optimally maintained because the presence of salt may hinder the solubilizing property of oxygen. Simple aerobic bioreactors can be constructed with aerated lagoons or oxidation ponds for the storage of the waste in the open environment and with a rotating disk that contains the microbe as a biofilm for regular churning.
Examples of commonly used aerobic bioreactors at an industrial scale include stirred tank bioreactors, airlift bioreactors, and inverse fluidized bed bioreactors. The most common aerobic reactor is the stirred tank reactor where air is sparged from the bottom of the reactor. In the airlift bioreactor mixing is provided by the turbulence created by gas. The oxygen transfer coefficient is high for airlift reactors compared to that of stirred tank reactors.
Aerobic Reactor Specification:
| No. | Item | Parameter | Remark |
| 1 | Three-dimensional silo volume | about 90m3 | Ф5200mm H4000mm |
| 2 | Inner material | 6# angle steel, t2.5mm plate | SUS304 |
| 3 | Outer material | 6# angle steel, t2.5mm plate | Q235B |
| 4 | Insulating layer | 50mm | Fire retardant rock wool |
| 5 | Standard component | A4 strength class 70 | SUS304 |
| 6 | Electric auxiliary heating in winter | 4kw |
| 1 | Spindle size | Ф400mm | Material: 45# |
| 2 | Mixing blade | 6 layers | Material: SUS304,20# |
| 3 |
Driving Method
|
Hydraulic ratchet drive | Material: 45# |
| 1 | Motor 7.5KW-4-B5 | 7.5kw | ABB, JSMC |
| 2 | Main pump HY40-RP | Plunger pump, flow 40L/MIN | HY, HSG |
| 3 | Main hydraulic cylinder | OD 200mm, Lever diameter 100mm | Bosch Rexroth, HSG |
| 4 | Hydraulic control check valve | Z2S10 | Bosch Rexroth, HSG |
| 5 | Main valve block assembly | HT131118.23 | Bosch Rexroth, HSG |
| 6 | The electromagnetic valve | 4WE6J/G24 | Bosch Rexroth, HSG |
| 7 | The electromagnetic valve | 4WE6H/G24 | Bosch Rexroth, HSG |
| 8 | Air filter | QUQ2 | DEL |
| 9 | Suction filter | WU-160X100 | DEL |
| 10 | Wind cooler | ACE6 | SH |
|
Working pressure:26/6MPa Working flow:15-58L/min System power:7.5KW Oil tank capacity:200L |
|||
| 1 | Main frame lifting | 3150×8900 | Material: Q235 |
| 2 | Motor reducer lifting | 2.2kw | |
| 3 | Feeding port motor | 0.1kw(CH28-200-1200) | 1:1200 |
| 4 | Silo | 1.5m³ | SUS304 t5mm |
| 1 | Upper air supply scroll pump | Model: JCSFW-630-7H2, power: 2.2KW, flow: 350m³/h, pressure: 20KP | Contains attached filter, muffler, frequency conversion control |
| 2 | Bottom air supply scroll pump | Model: XCSFW-630-7H2, power: 2.2KW, flow: 350m³/h, pressure: 20KP | Contains attached filter, muffler, frequency conversion control |
| 3 | Air supply duct | DN80 | Hot galvanizing |
| 4 | Check valve | H76 | Clip-on |
| 1 | Biological filter bed | φ1.0*3.1m | PP, SUS304 |
| 2 | Active biological filler | Ф50 hollow ball | |
| 3 | Organic filler | Ф50 hollow ball | |
| 4 | Circulating pump | Q=2,H=32,N=0.75KW | KSB, Kindway |
| 5 | Humidification pump | Q=1.8,H=16,N=0.37kw | SUS304 |
| 6 | Circulating water tank | 1x1.5x0.5mm | AAF |
| 7 | Fan | Model: JC-181B-3KW | |
| 8 | Soft connection | DN250 |
| 1 | PLC Controller | SIEMENS |
| 2 | Electronic components | Schneider, CHNT |
